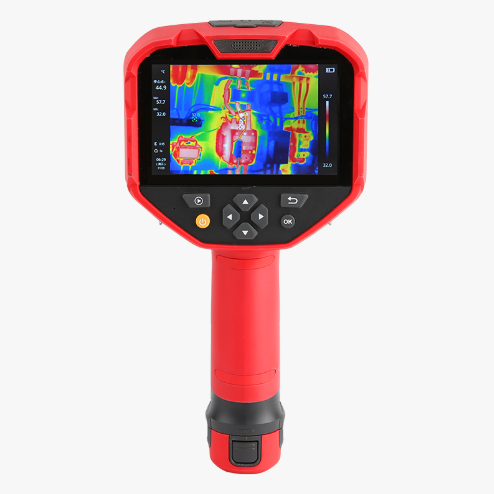

CDI384H Infrared Thermal Imager
1. Product Overview
The CDI384H model features 384×288 infrared pixels and 5 million visible light pixels, allowing you to clearly see the imaging details. Its temperature measurement range is from -30 to 650℃, covering a wide range of both high and low temperatures to meet the needs of most scenarios. It can also take photos and store real-time temperature data, and supports image browsing, editing, and analysis. The automatic/manual isotherm function enables you to view the corresponding temperature areas as needed. Additionally, it comes with a free mobile app and PC software for analyzing infrared images and exporting reports.
2. Product Features
(1) Infrared Resolution: 384×288 (Manual Focus)
(2) Frame Rate: 25Hz
(3) Visible Light Pixels: 5 Million
(4) Temperature Measurement Range: -30~650℃
(5) Temperature Measurement Accuracy: ±2℃/±2% (whichever is larger)
(6) Auto/Manual Isotherm Function
(7) Mobile APP/PC Software
(8) 7 Color Palettes Adjustable
(9) Digital Zoom: 1× 2× 4×
(10) 5-point, 5-area, 1-line Temperature Analysis
(11) Center Point Temperature Measurement, Automatic Tracking of High and Low Temperatures
(12) High and Low Temperature Alarm
(13) Image Modes: Visible Light, Fusion, Thermal Imaging, Picture-in-Picture
(14) Image Browsing and Editing
(15) Detachable Rechargeable Battery (Battery can be charged separately)
3. Main Technical Data
| Model |
CDI384H |
Model |
CDI384H |
| Sensor |
Uncooled Vanadium Oxide |
Temperature Display |
Center Point Temperature, High and Low Temperature Tracking |
| Mode |
Auto Gain |
Measurement Unit |
Celsius (Default) / Fahrenheit |
| Temperature Range |
-30-650℃ |
High and Low Temperature Alarm |
With (LCD Animation Alarm) |
| Accuracy |
±2℃/±2% (Whichever is Larger) |
Image Mode |
Visible Light, Thermal Imaging, Fusion, Picture-in-Picture |
| Emissivity |
0.95 (Default) 0.01-1.00 |
Display Screen |
4.3" IPS |
| Pixel Size |
17μm |
Image Save Format |
BMP |
| Thermal Resolution |
384×288 |
Image Browsing |
Temperature Analysis, Color Palette, Annotation |
| Visible Light Pixels |
5 Million |
USB Communication |
Type-C (Real-time Image and U-Disk Storage) |
| Color Palette |
Iron Red, Rainbow, Black Hot, White Hot, Red Hot, Lava, High Contrast Rainbow |
WiFi |
Yes |
| Infrared Spectral Bandwidth |
8-14μm |
PC Screen Cast |
Yes |
| Field of View (FOV) |
28°×21° |
PC Analysis Software |
Yes (Real-time Image, Photo Download and Analysis) |
| IFOV |
1.3mrad |
Mobile APP |
Yes (Photo Download and Analysis) |
| Lens Focal Length |
13mm |
Language |
Chinese/English |
| Focusing Method |
Manual Focus |
Certification |
CE FCC |
| Sensitivity |
<60mk@25℃ |
Operating Temperature |
0℃-50℃ |
| Frame Rate |
25Hz |
Storage Temperature |
-10℃-60℃ |
| Digital Zoom |
1×, 2×, 4× |
Operating Humidity |
10%-95%RH |
| Temperature Analysis |
5 Points, 5 Areas, Line (Up to 6 Objects on Screen) |
IP Rating |
IP54 |
| Isotherm |
Auto/Manual |
Drop Test |
2m |
